Detailed Description

H8c5357aae04542ee80d1780d350386ceq

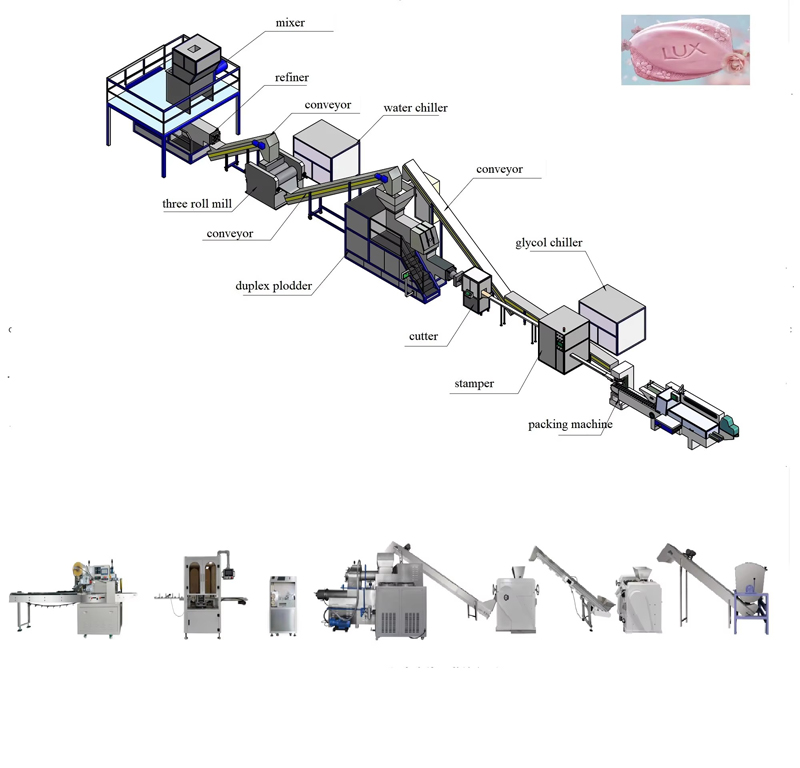

Products Description

H0012d0d68f074c9b85fab064b3fec8334

Type	Capacity (kg/h)	Worm diameter (mm)	Stamping force (kg)	Max. mass of toilet soap cake stamped (g)	Motor (kW)
100-XSY	100	100	1000	80	7
200-XSY	200	120	2000	100	9
300-XSY	300	150	3000	125	11

H376cdebca5e247a0b798d290c322421f5

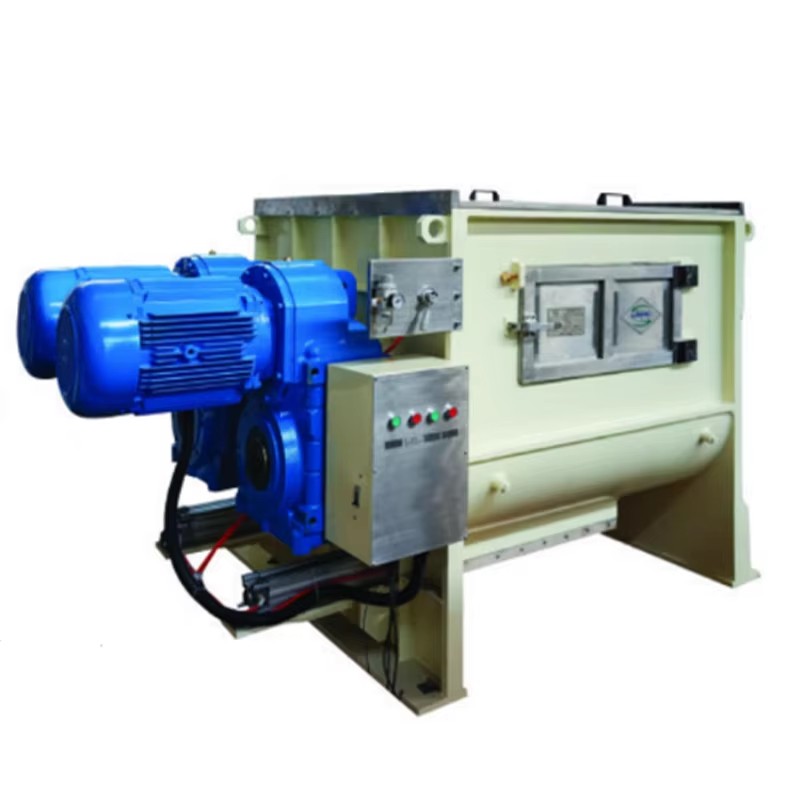

1.MIXER

Mixing soap noodles or soap base with other additive , like perfume ,colors and so on.

Mixer With Two Agitators For Toilet Or Translucent Soap is designed to mix soap pellets and flakes for manufacturing toilet soap, translucent soap, fully synthetic or Combo products. “Double-sigma” counter-rotating blades allowing a more intimate mixing degree and assuring a very good penetration and dispersion of the additives throughout the entire mixture.

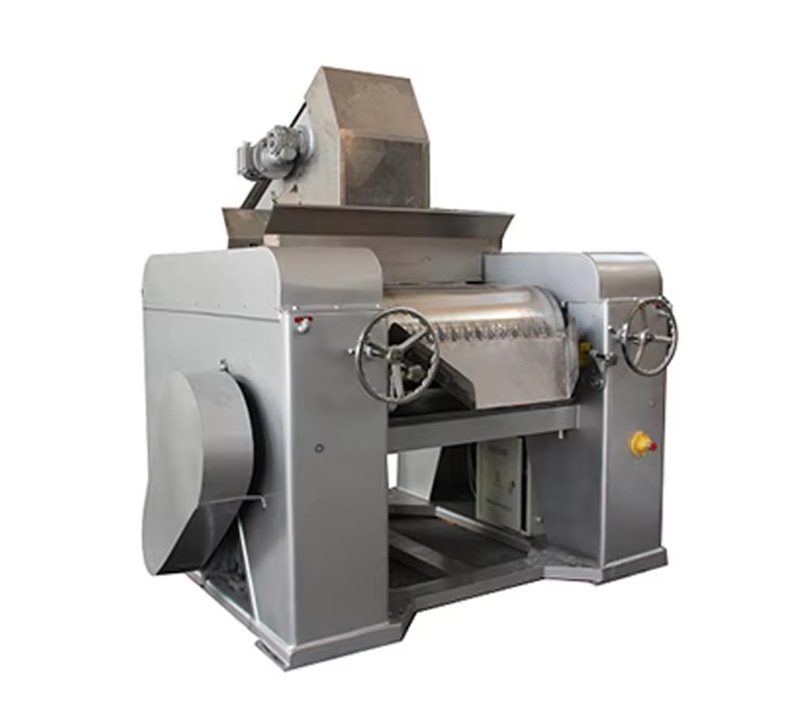

2.THREE ROLL MILL

Milling mixied soap base smoothly

Three rolls are horizontally placed with different rotating speeds. The refining function is achieved by pressing and squeezing force between the adjacent rolls. The main body is made of high quality stain structure, strong and solid

H956607cec9a9436c8671c44705893067S

H9213a9f4d4844d21a34fa56740f5c0d7q

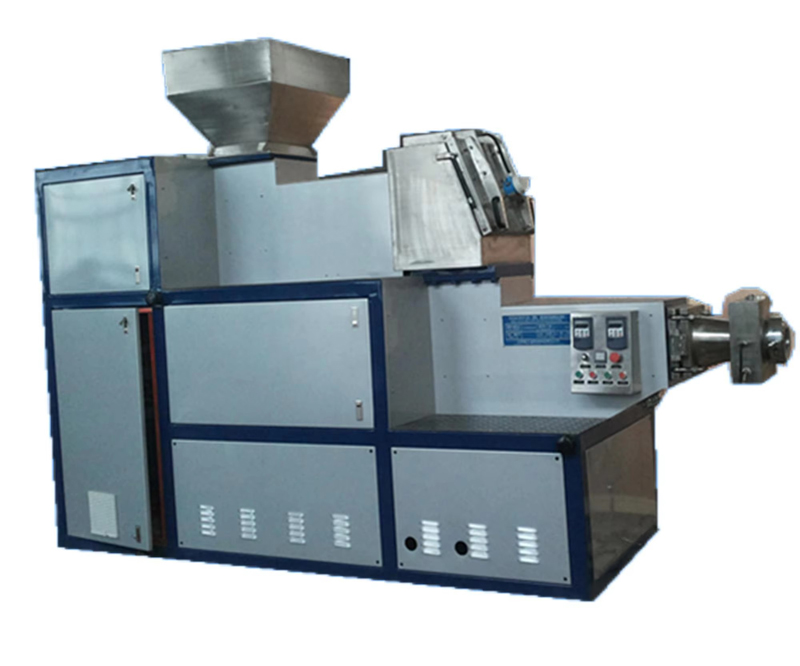

3.PLODDER /EXTRUDER

Extruding soap bar

It adopts special-designed milling plate structure, to perform homogenizing refining for improving transparency; cold drawing thick-wall seamless stainless steel pipe and stainless steel screw blade, to cool the fore-end temperature down to reasonable range; and a special-designed thin stainless steel worm, to increase extruding power and compact soap noodles for easy convey.

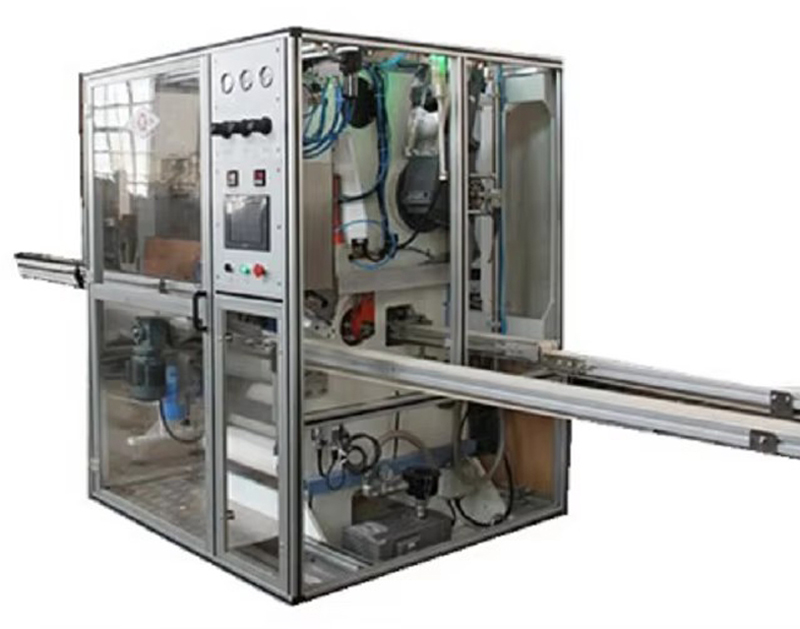

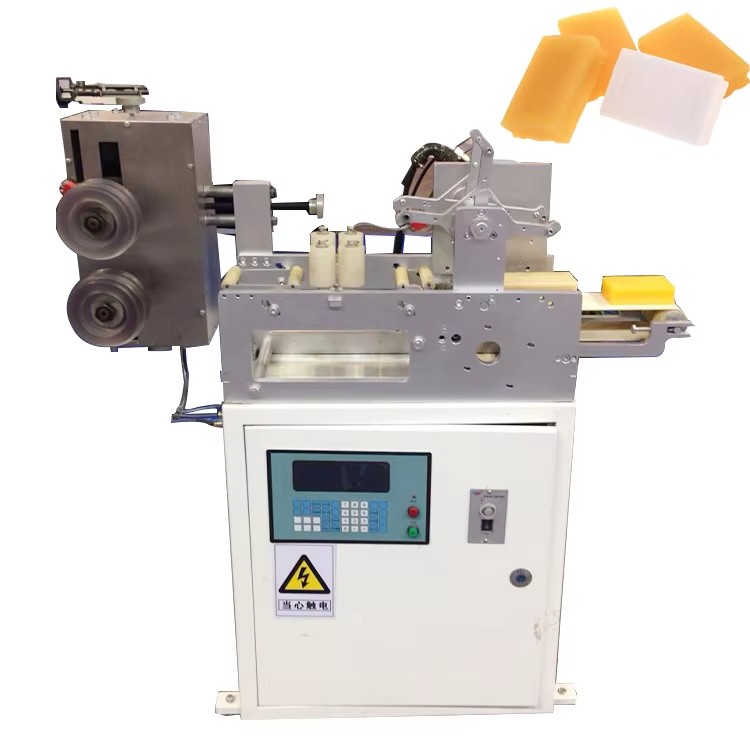

4.Automatic cutter

Cutting long soap bar into small soap bar(rectangular or square) and press logo on bar .

Cutter Can provide various types of soap bar for soap stamping machine,it can set different length and change easily.which can produce perfect translucent soap products. It can produce soap bar accurately. Weight can be accurate to + / - 1.5 (g).and stamp different logo according to customer’s need.

Heca67b16792942859a05db9424629529s

Hab7bda5df68b4812b91d1aead07eb93fQ

5.Soap stamping machine ( press machine)

Stamp or press any soap shape .like round ,oval and any shape you want .

Vertical Stamper with Freezing Dies is a new generation stamper based on the global latest technology, which is a program-controlled machine, an integration of vacuum, pneumatic, electronic, refrigeration, automatic and manual lubrication mechanisms. All of the key parts and components (such as slideways, bearings, lubrication system, pneumatic system and drive system) are supplied by well-known brands, which are high-speed, reliable and low energy-consumption.

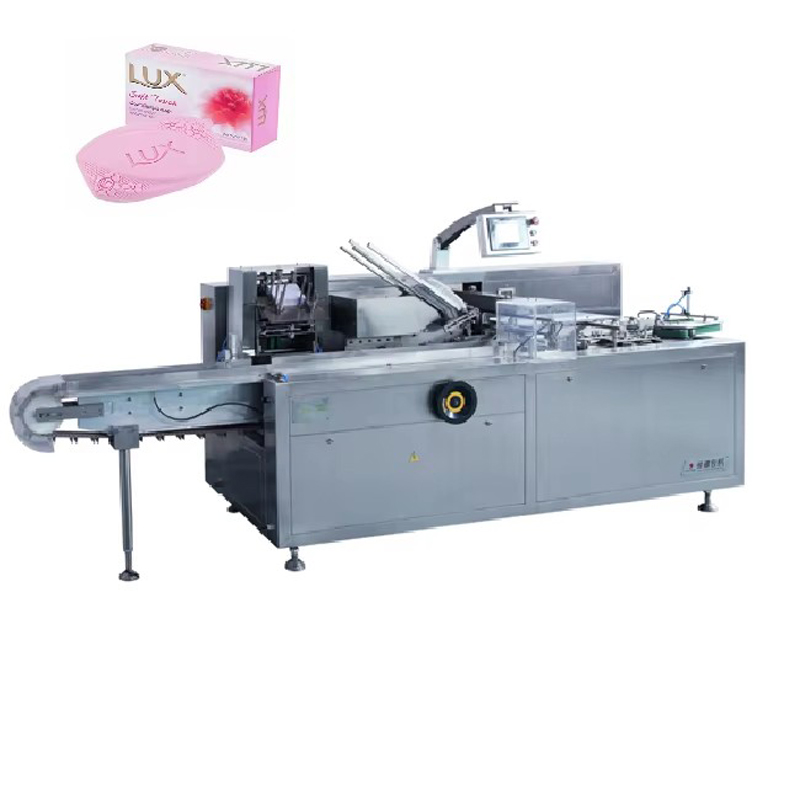

6.Packing machine

packing machine inluding flow wrapping

machine, carton packing machine, which feed soap bar ,open carton,pack soap and print print the batch number and production date, etc., is a multifunctional and fully automatic packing machine, it can save labor, reduce production cost.
